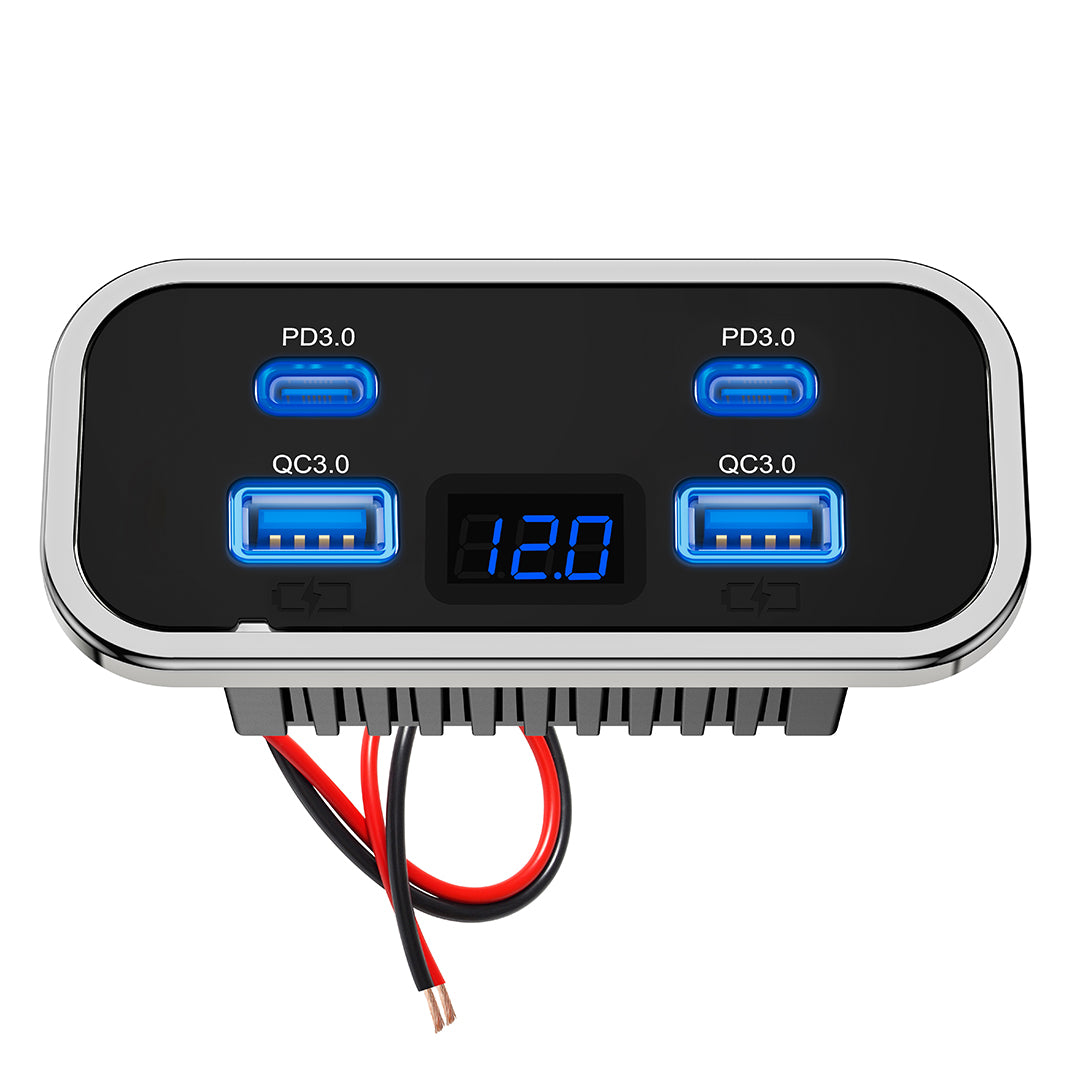

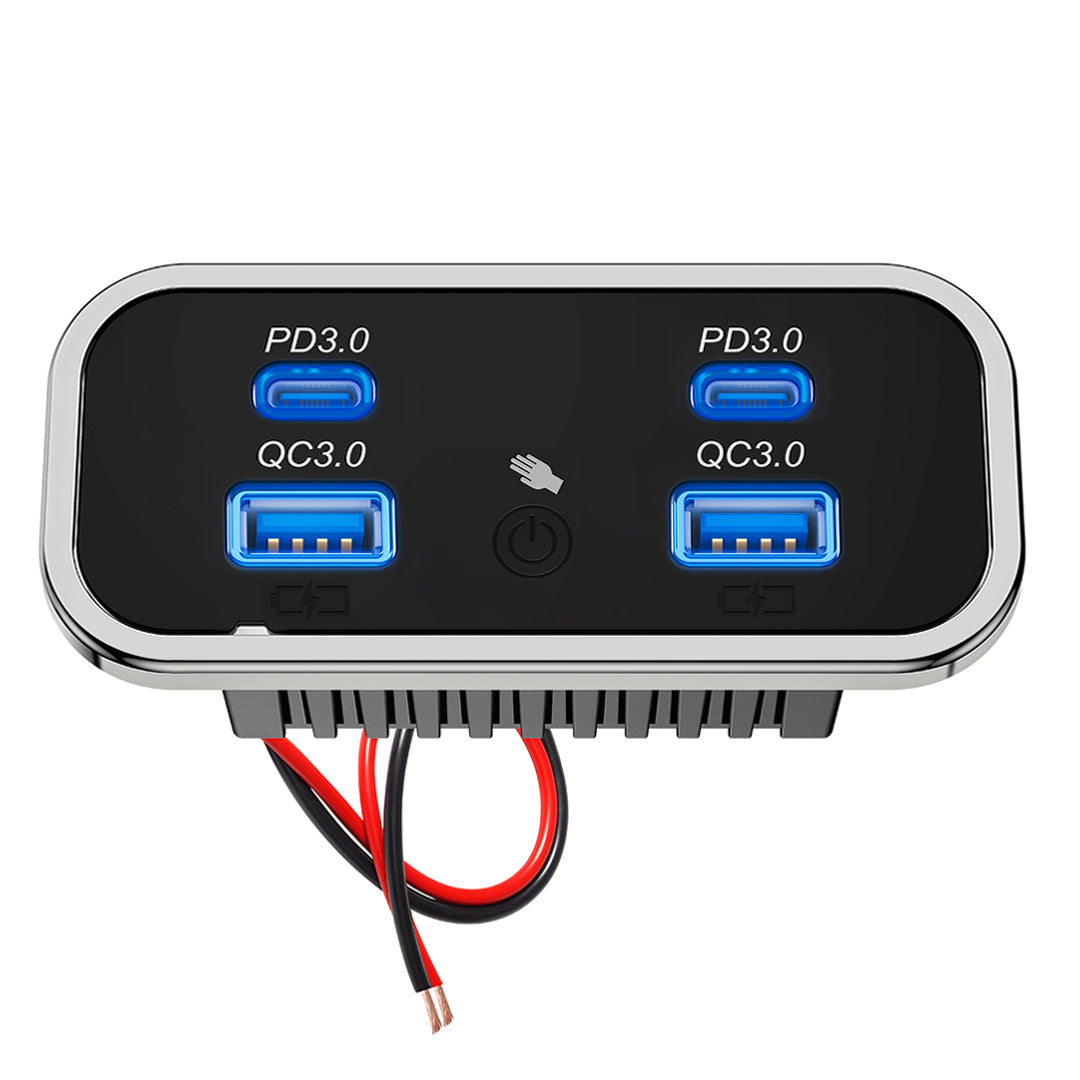

12V/24V 4-Port USB Charger Socket with Switch - 2x USB-C PD + 2x USB-A QC3.0

OC-CS-QUAD-SW

Charge four devices at once. Built for families, fleets and busy caravans.

The 4-port answer for setups where everyone wants to plug in: 2x USB-C PD ports for phones, tablets and laptops, plus 2x USB-A QC3.0 ports for everything else. A push-button switch lets you cut power completely to protect your battery between trips.

Key Features

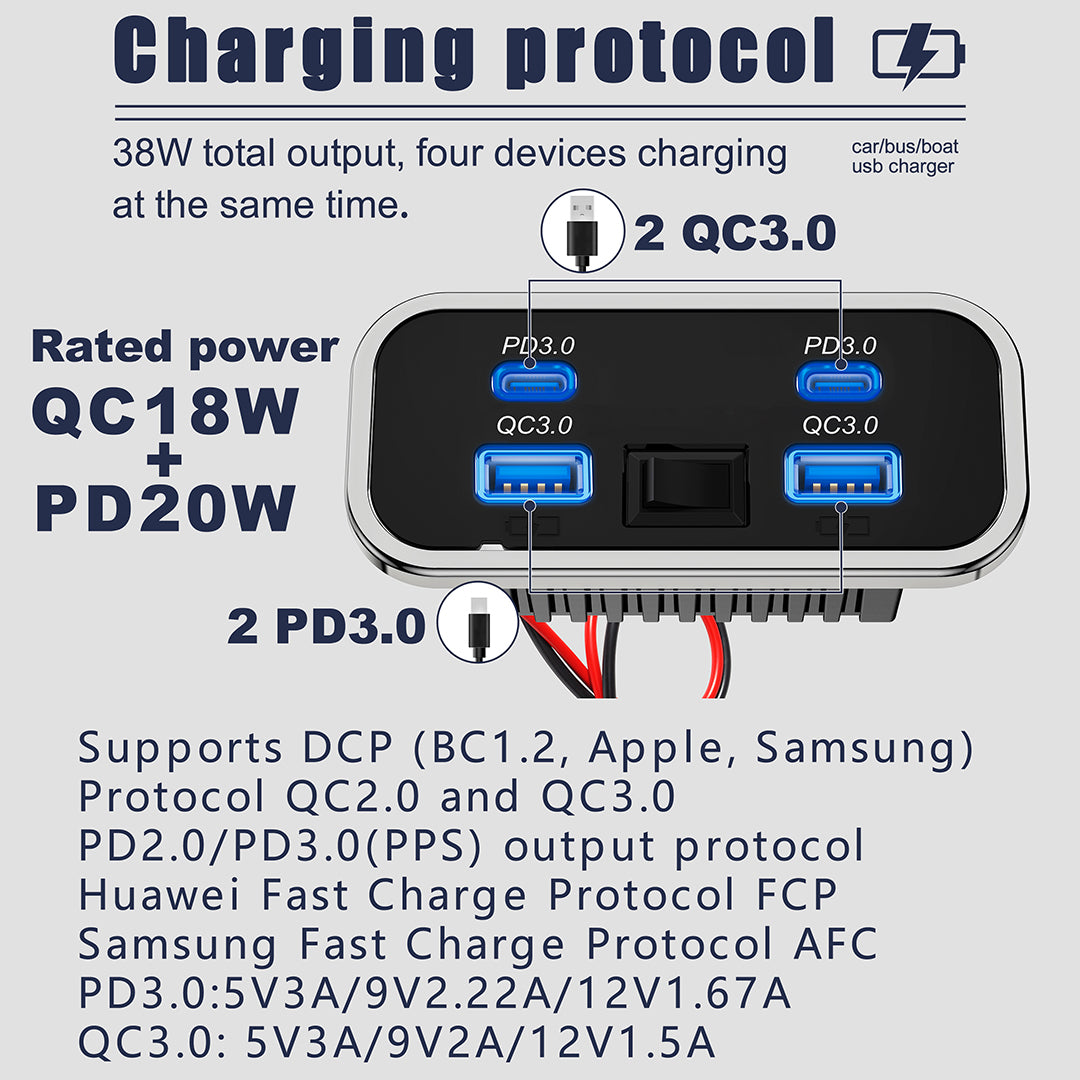

  • 4 fast-charge ports - 2x USB-C PD3.0 (20W each) + 2x USB-A QC3.0 (18W each)

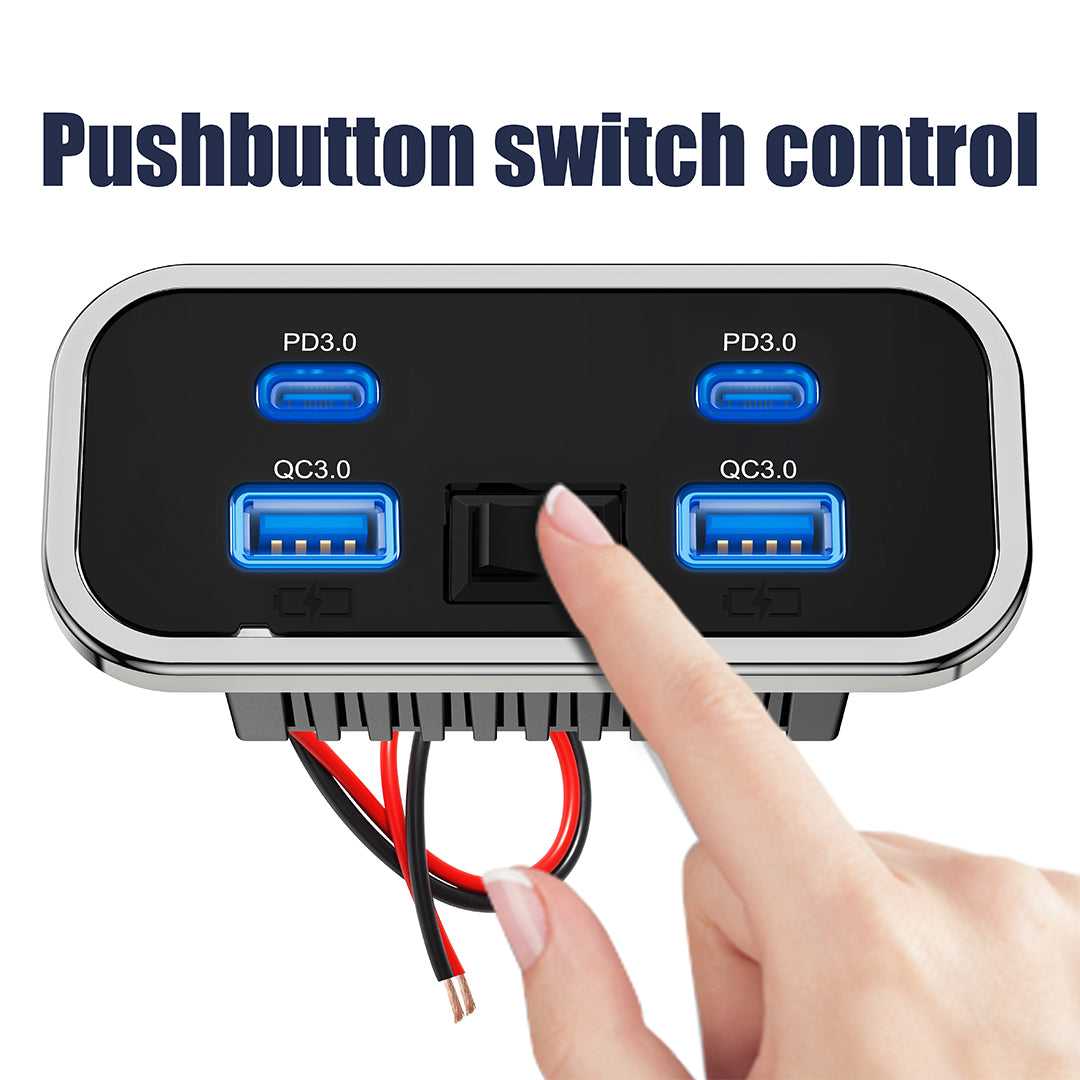

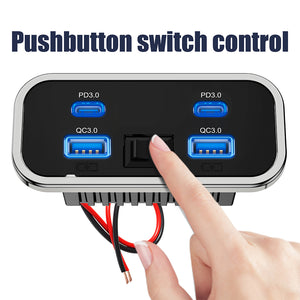

  • Push-button on/off switch - eliminates parasitic drain
  • 12V & 24V compatible
  • Charge 4 devices simultaneously - up to 38W total under load
  • Chrome bezel finish - premium look
  • Standard 60mm panel mount - fits most caravan and 4WD cut-outs
  • Smart chip protection - over-current, over-voltage, short-circuit, over-temp
  • 13cm pigtail cable
  • IP55 rated
  • CE / FCC / RoHS certified
  • 24-month warranty

Specifications

Input DC 12V-24V
USB-C ports (x2) PD3.0, up to 20W each
USB-A ports (x2) QC3.0, up to 18W each
Total combined ~38W under simultaneous load
Switch Push-button ON/OFF

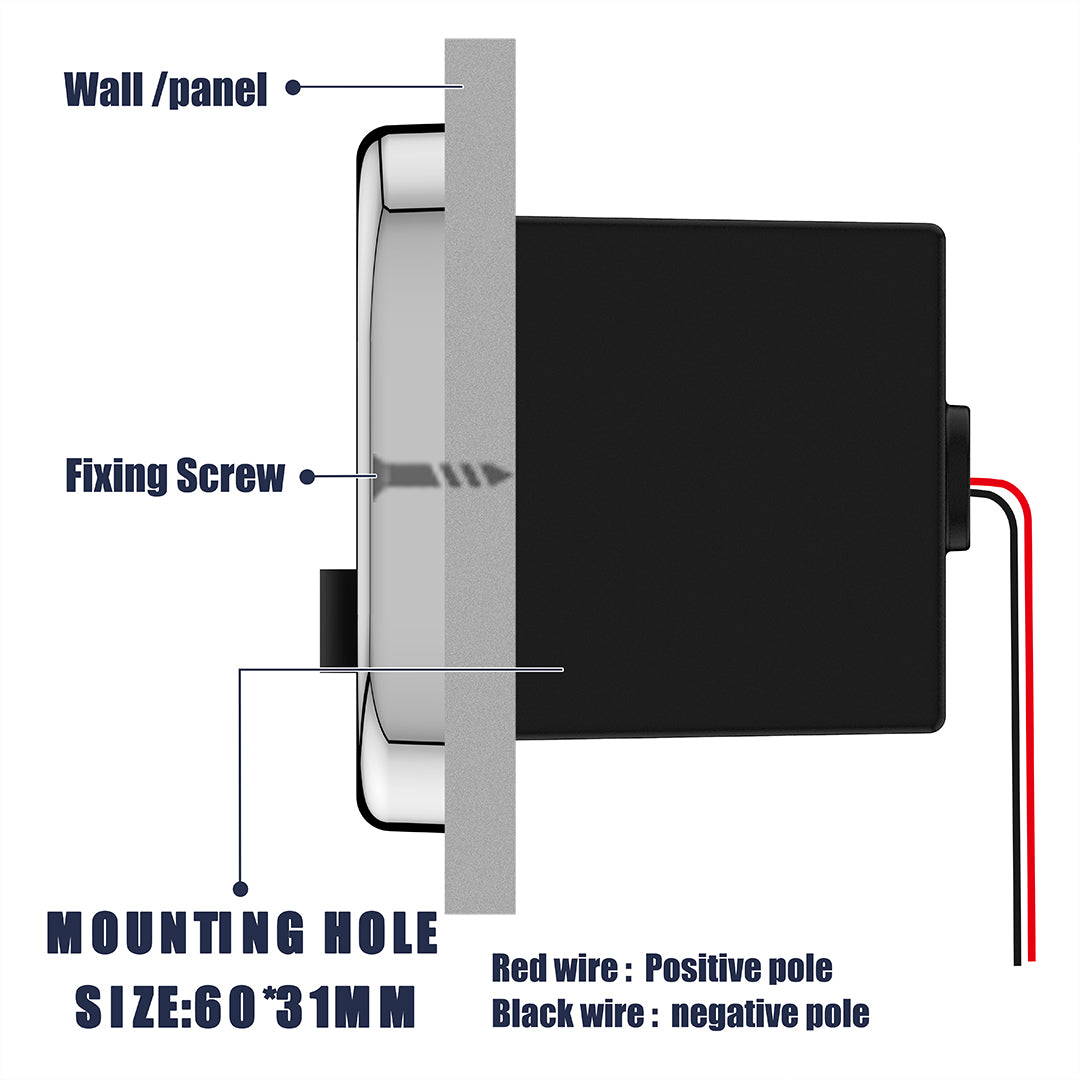

Mount hole 60 x 31mm
Cable length 130mm pigtail
Waterproof rating IP55
Operating temp -20C to +60C
Certifications CE / FCC / RoHS

Made For

  • Family caravans and motorhomes
  • Camper trailer cabin walls
  • 4WD second-row passenger areas
  • Tradie crew vehicles and work trucks
  • Boat helm and cabin areas
  • Bus and minibus retrofits

Compatibility

Charges any USB-C or USB-A device including iPhone (PD), Samsung/Android (QC + PD), iPad, GoPro, two-way radios, dash cams, headlamps. Standard 60mm panel mount fits most existing caravan and vehicle cut-outs.

Backed by a 24-month Outcamp warranty. Ships from Australia.
