12V/24V Waterproof USB Charger Socket - IP67 81W (USB-C PD 45W + USB-A QC3.0 36W)

OC-CS-WP81-IP67

The toughest USB charger socket we sell. 81W of fast-charge muscle, sealed against rain, spray and dust.

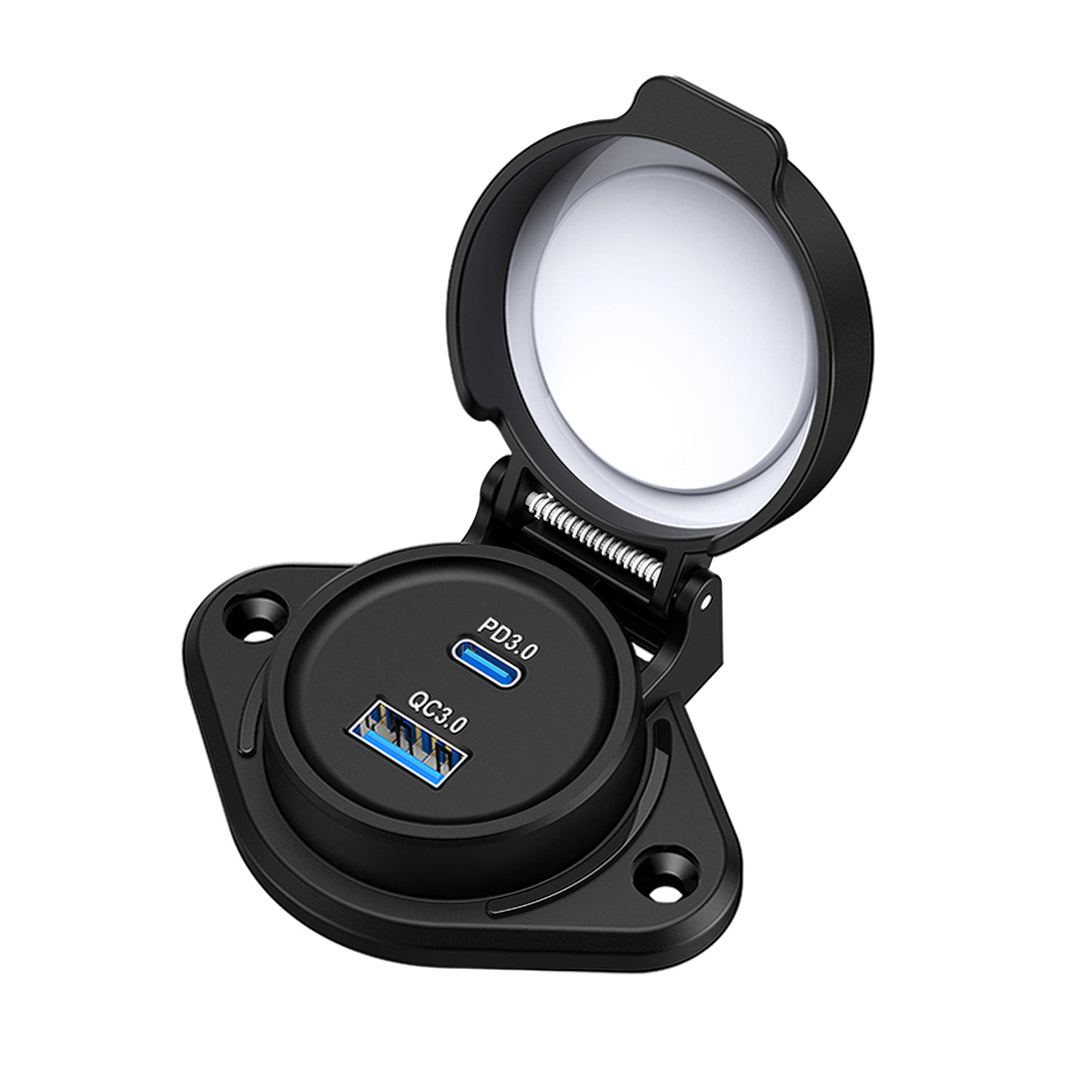

Spring-loaded waterproof flip cover, IP67-rated build, and enough power to charge a USB-C laptop. Designed for boat decks, motorbike fairings, ATV consoles, exterior 4WD mounts and any install that's exposed to the weather.

Key Features

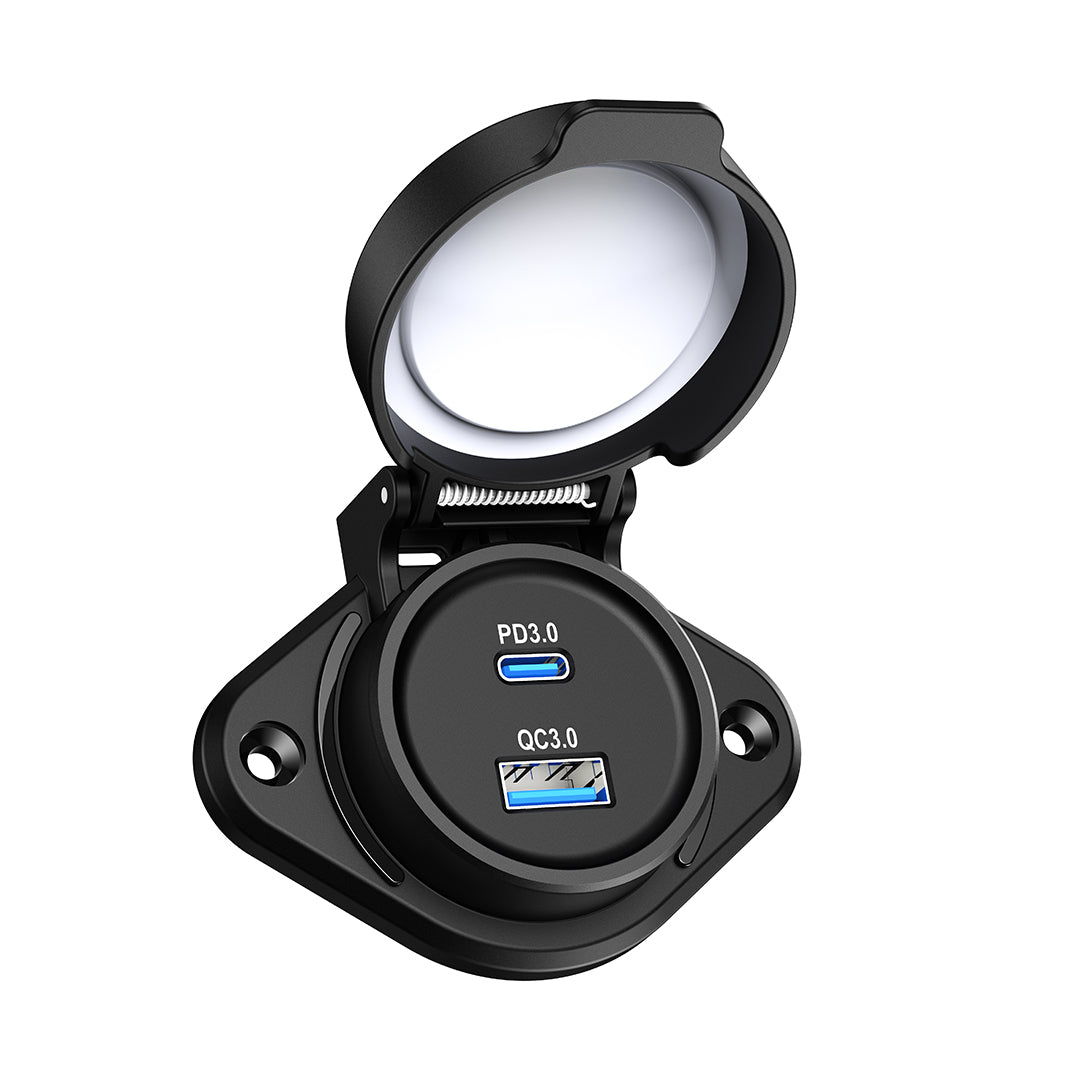

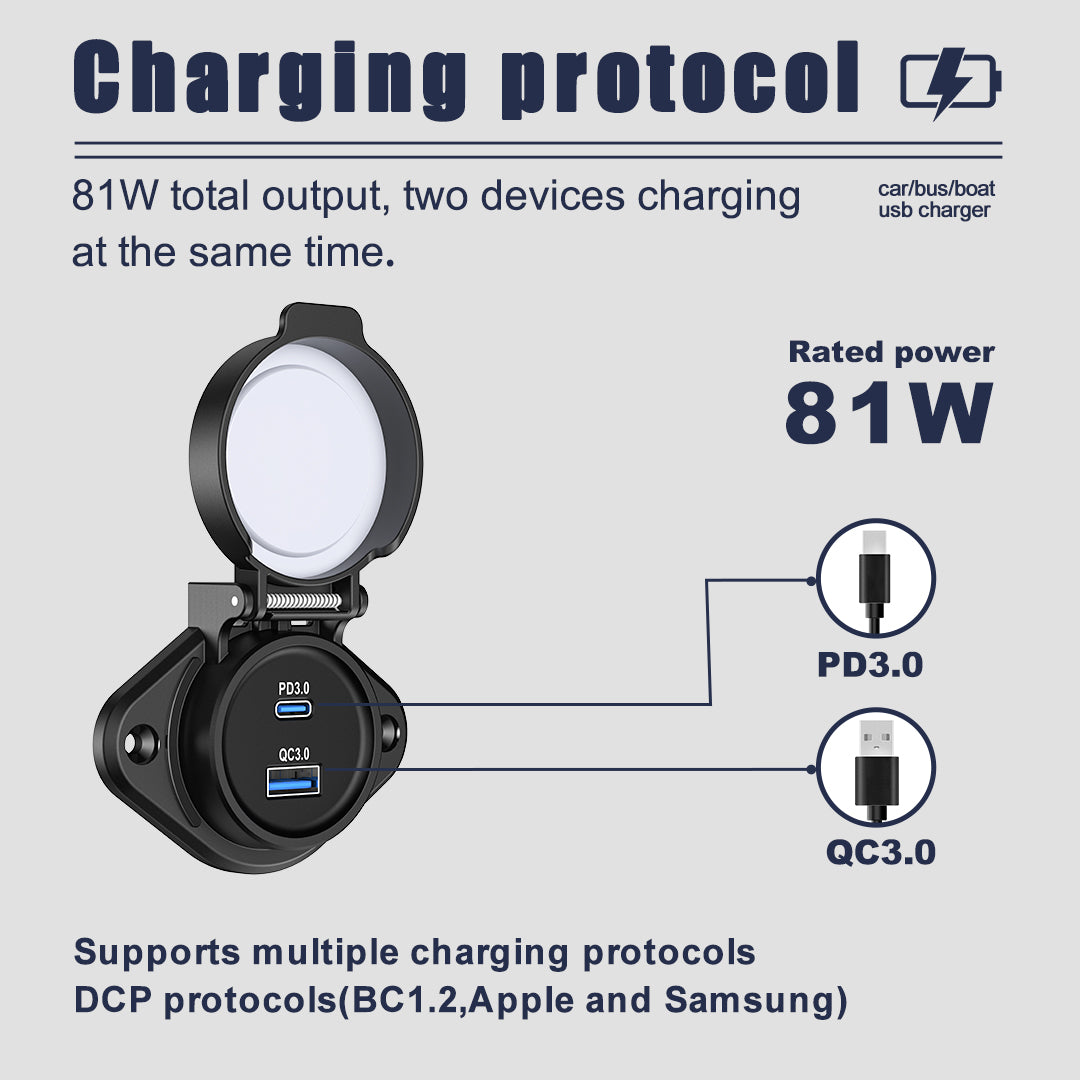

  • 81W combined output - USB-C PD3.0 45W + USB-A QC3.0 36W
  • Charges USB-C laptops - 45W PD handles MacBook Air, iPad Pro, Microsoft Surface Go and most ultrabooks
  • IP67 waterproof - survives temporary submersion (1m, 30 min)

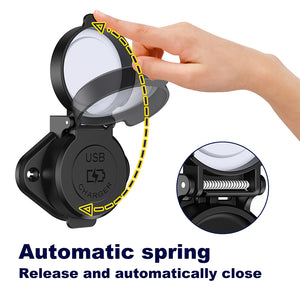

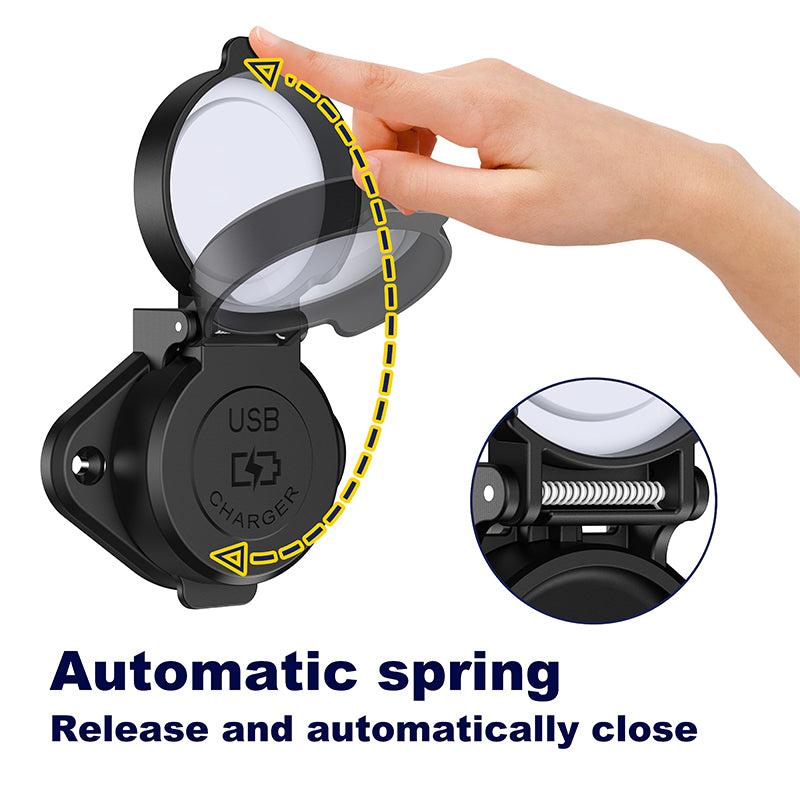

  • Spring-loaded flip cover - auto-seals when not in use
  • 12V & 24V compatible

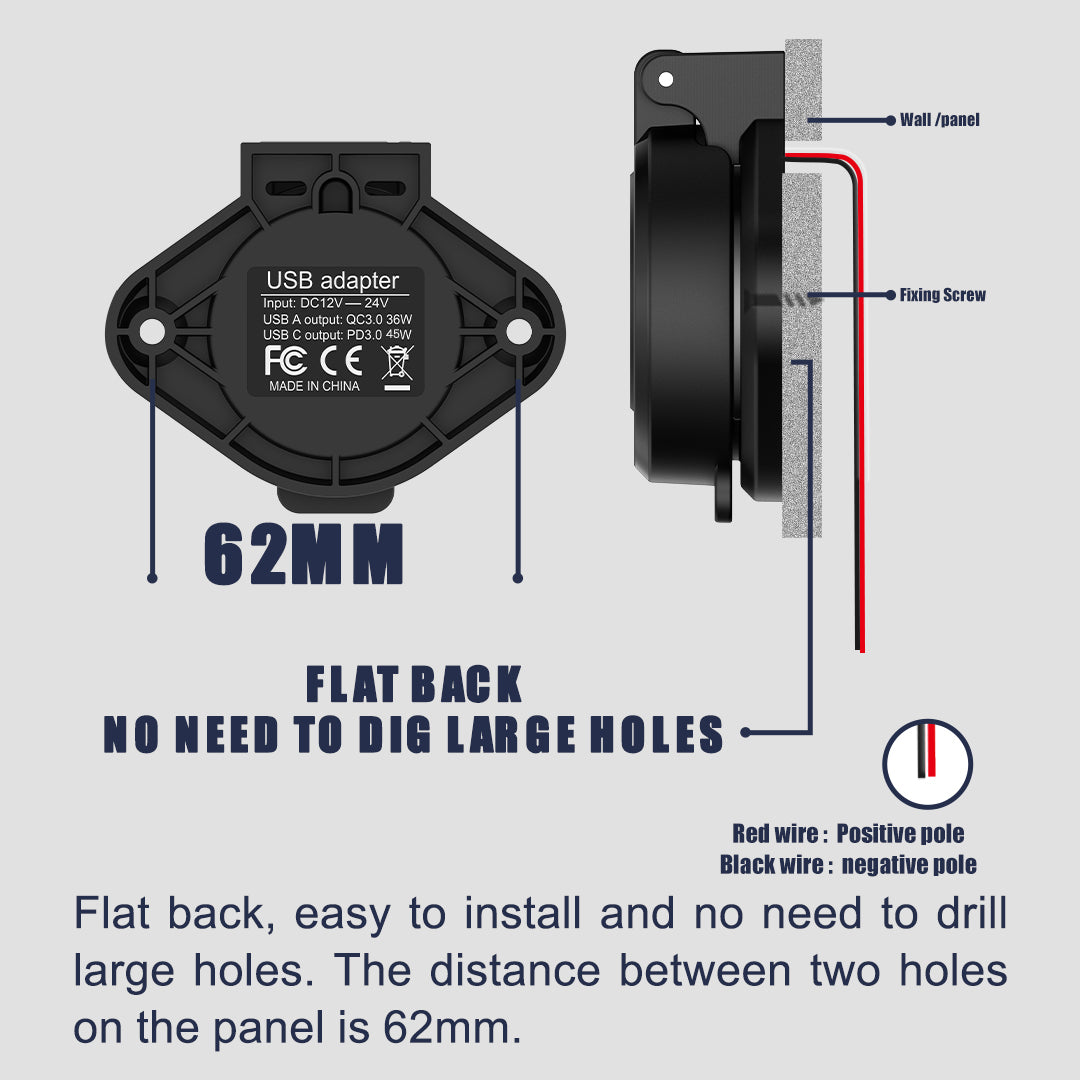

  • Round 62mm install hole - standard cigarette-lighter cut-out
  • Aluminium body with marine-grade seals
  • Smart chip protection - over-current, over-voltage, short-circuit, over-temp
  • 13cm pigtail cable
  • CE / FCC / RoHS certified
  • 24-month warranty

Specifications

Input DC 12V-24V
USB-C output 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (PD3.0 45W)
USB-A output 5V/3A, 9V/3A, 12V/3A, 20V/1.8A (QC3.0 / 36W)
Total power 81W
Waterproof rating IP67 (dust-tight, 1m submersion 30 min)
Dimensions 63 x 62 x 20.6 mm
Install hole ~29mm (standard cig socket)
Cable length 130mm pigtail
Operating temp -20C to +60C
Certifications CE / FCC / RoHS

Built For

  • Boat decks, helm stations, T-tops
  • Motorcycle and ATV handlebars / consoles
  • 4WD bull bar, snorkel and exterior mounts
  • Tinnies, jetskis and kayaks
  • Tradies' trailers and exposed work-vehicle mounts
  • Camper trailer drawbars and external charging points

Compatibility

Charges all USB-C and USB-A devices including iPhone (PD fast-charge), Samsung/Android (QC + PD), iPad Pro (45W full-speed PD), MacBook Air, GoPro, two-way radios, fish finders, dash cams. Fits standard ~29mm panel cut-out.

Backed by a 24-month Outcamp warranty. Ships from Australia.
