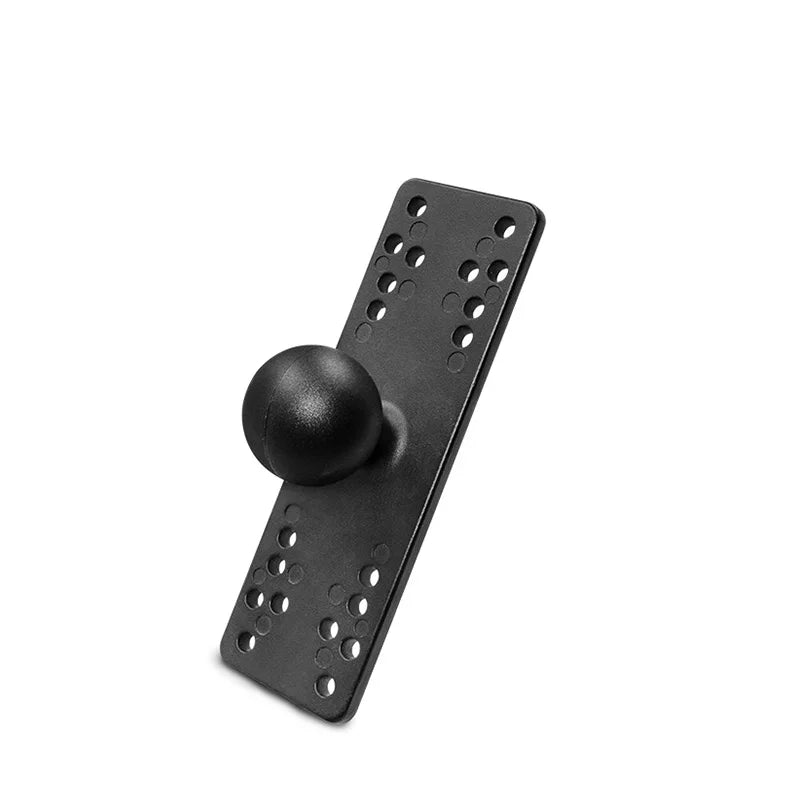

A universal aluminium adapter plate that lets you mount almost any fish finder, marine GPS, chartplotter, CB radio or VHF unit to our Modular Mount System. Pre-drilled with multiple bolt-hole patterns to suit Garmin, Humminbird, Lowrance, Raymarine and most other marine electronics, with an integrated 38mm (1.5″) rubber ball that connects to any standard 1.5″ ball-arm.

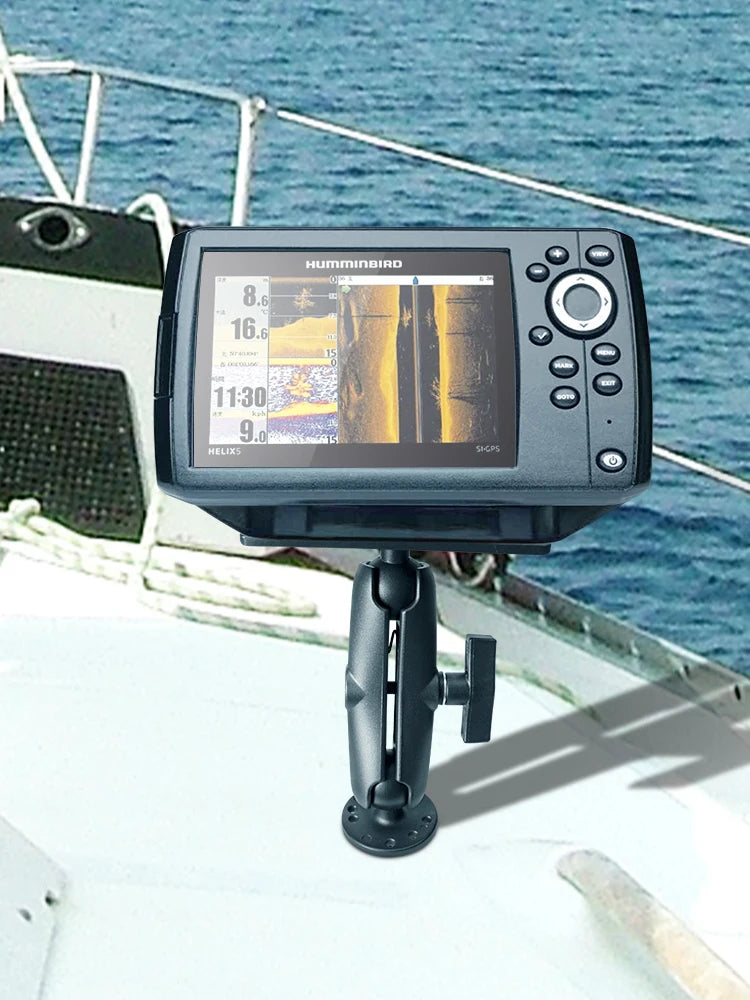

Built from powder-coated marine-grade aluminium so it will not rust on a saltwater boat, kayak, tinnie or jetty rod-holder setup. Pair it with one of our double-socket arms and a suction or rail base for a fully adjustable, vibration-damping mount that you can re-aim with one hand.
Key features
- Universal bolt-pattern coverage — fits Garmin, Humminbird, Lowrance, Raymarine and most other marine displays

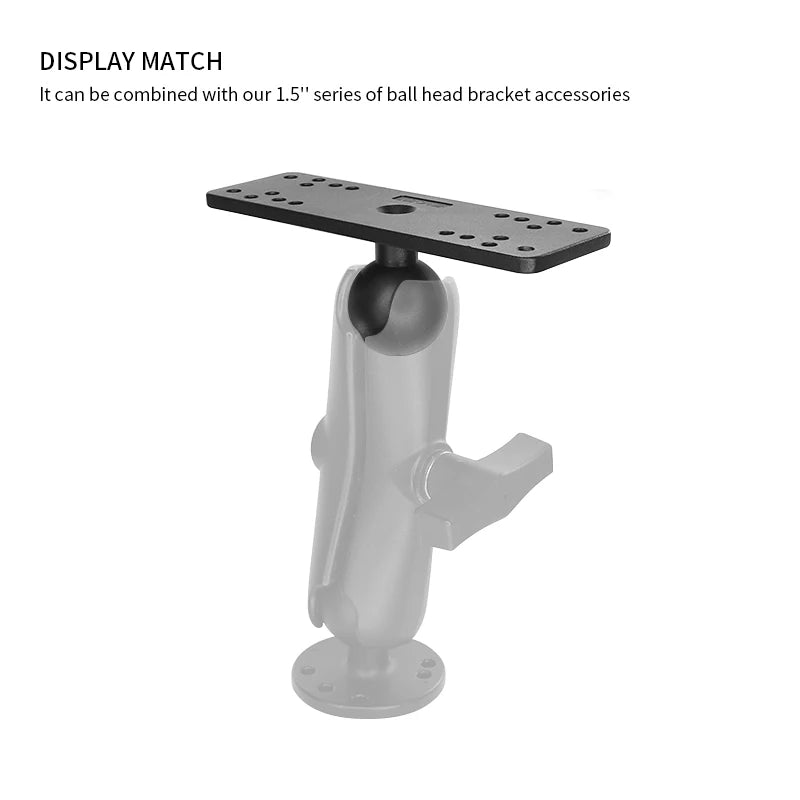

- Integrated 38mm (1.5″) rubber ball — works with any industry-standard 1.5″ ball-arm system (RAM, iBOLT, Arkon and our Outcamp Modular Mount System)
- Marine-grade aluminium body, powder-coated black for saltwater corrosion resistance
- Centre cut-out keeps the plate light and clears most cable runs
- Rounded R6 edges — no sharp corners on a moving deck
Bolt-hole patterns included on the plate
- 19 mm × 110 mm
- 31.75 mm × 72.4 mm
- 31.75 mm × 90.5 mm
- 31.75 mm × 139.7 mm
- 38 mm × 114.3 mm
- 20 × ø5.48 mm holes total

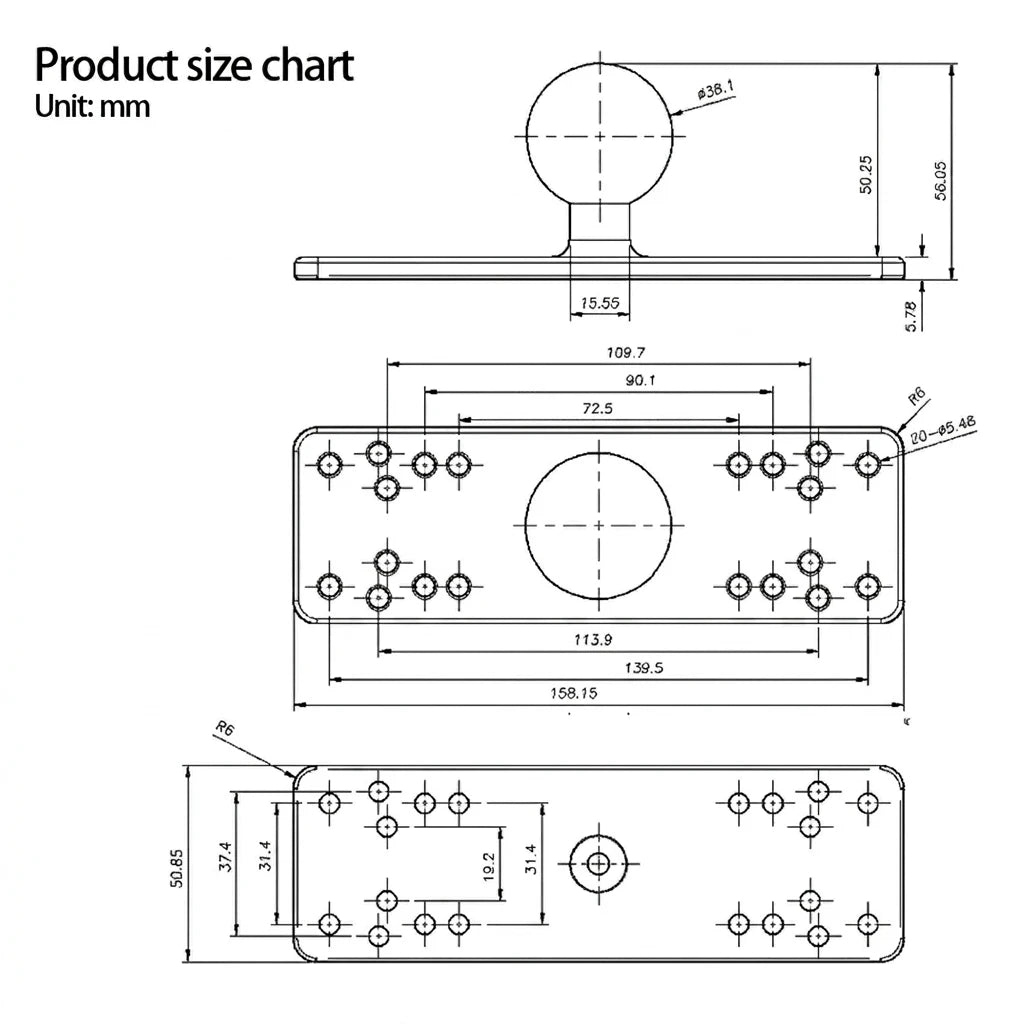

Specifications
-
Plate dimensions: 158 mm × 51 mm
-
Plate thickness: 5.78 mm
-
Total height (with ball): 56 mm
-
Ball size: 38.1 mm (1.5″)
-

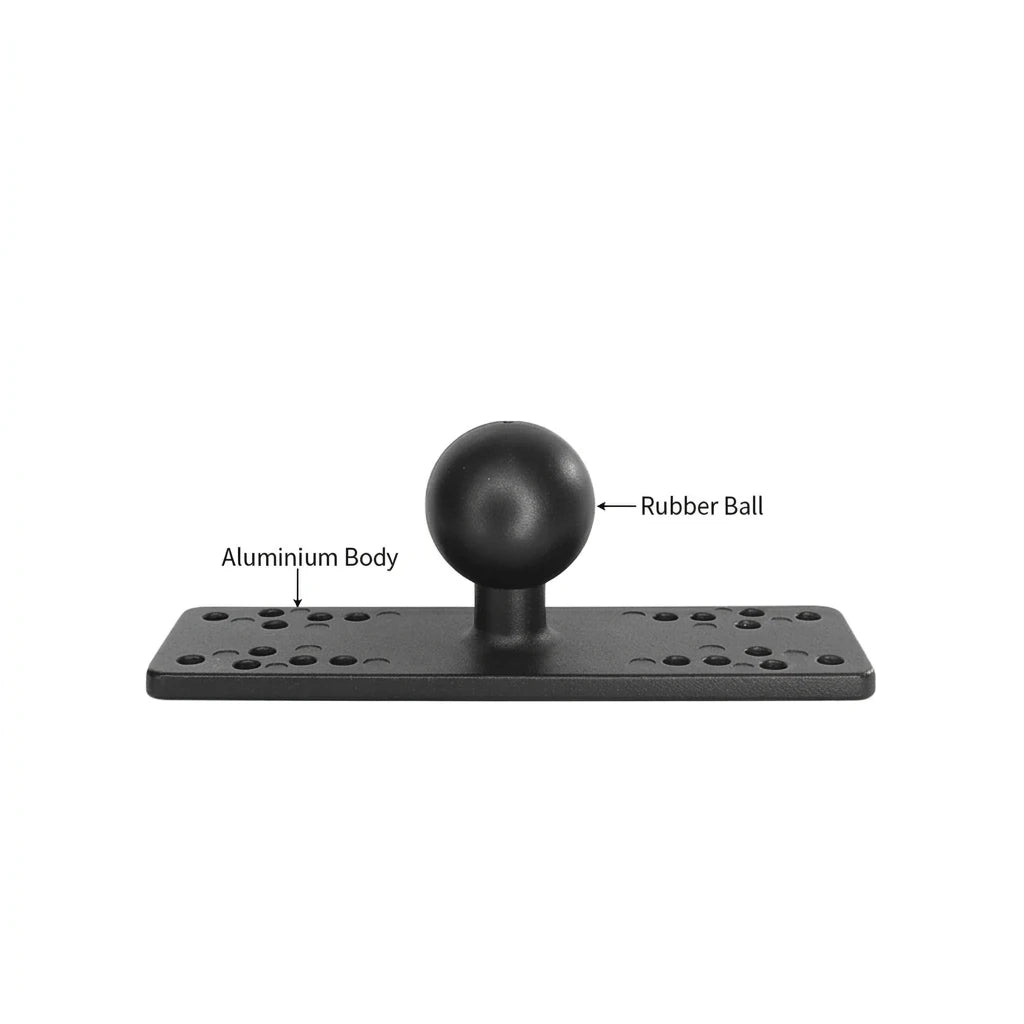

Plate body: marine-grade aluminium, powder-coated black
-
Ball: over-moulded rubber on a steel core
-
Corner radius: R6
What’s in the box
- 1 × Universal Fish Finder Mount Plate with 38 mm ball
Note: mounting screws for your fish-finder gimbal bracket are not included — most marine displays come with their own bracket hardware. The 1.5″ ball-arm and base are sold separately as part of our Modular Mount System.
