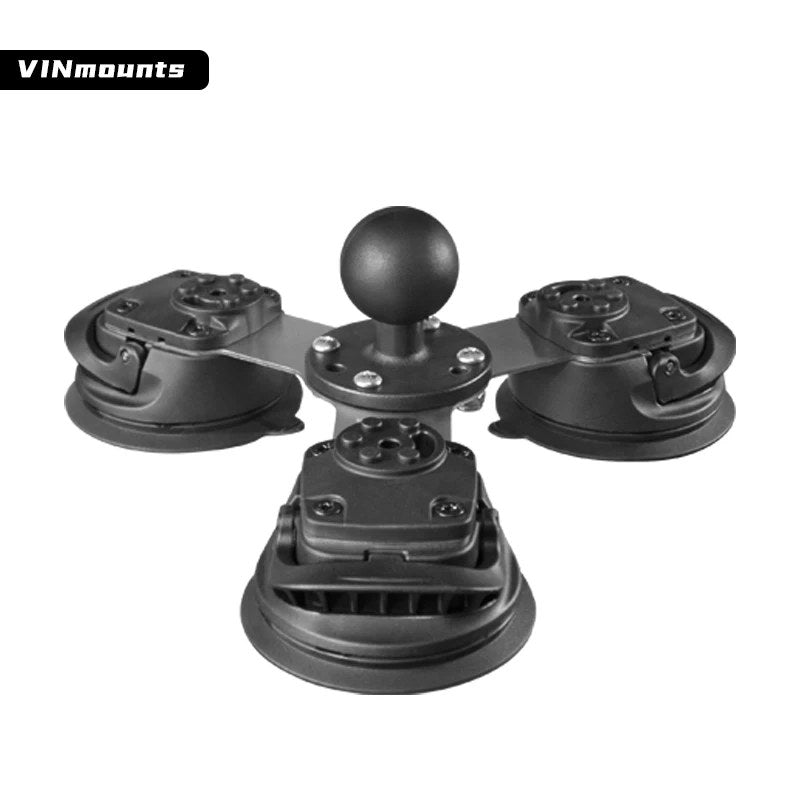

This triple-cup suction mount is a no-drill, heavy-duty base for tablets, GPS units, large phones and small displays. Three industrial-rubber vacuum cups spread the load across a 240mm triangular footprint, and a press-bar lever on each cup pulls a vacuum that holds firm on smooth glass and other non-porous surfaces. The 1.5" (38mm) ball on top accepts any C-size arm, including RAM Mounts and other Outcamp Modular Mount components.
Built for vehicles, boats, caravan windows and workstations where you cannot or do not want to drill. The triple-cup layout resists vibration and shake far better than a single-cup mount, so it is the pick when you are running a tablet on a 4WD touring rig, a chartplotter on a boat windscreen, or a heavier device on a workstation panel.
Key Features
-
No-drill installation: Vacuum mounts straight onto glass or any smooth, non-porous surface — no permanent fixings.
-
Triple-cup stability: Three 86mm suction cups in a 240mm triangle distribute load and resist road vibration.
-

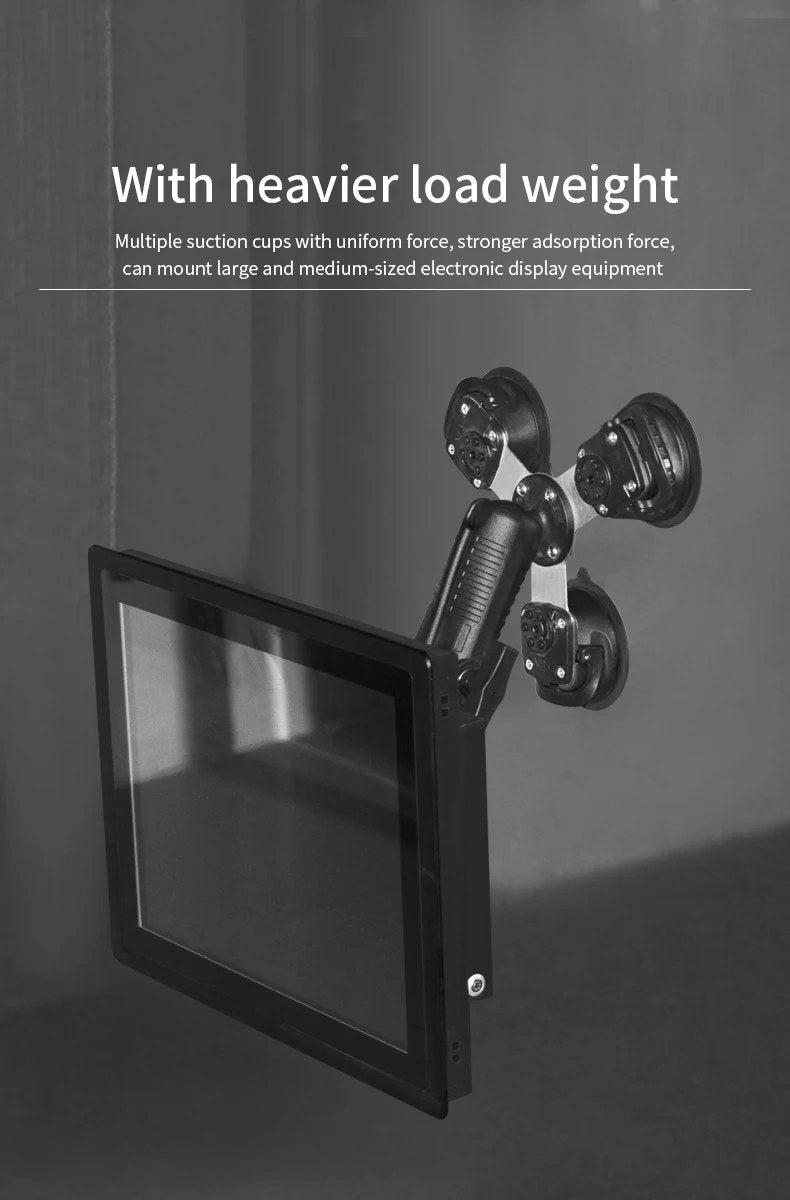

Heavy-duty load rating: Up to 3–5kg in the triple configuration — suitable for tablets, GPS units, fish finders and small displays.
-
Industrial rubber cups: Heat- and cold-resistant rubber stays flexible from -20°C to 60°C, so it holds in summer heat and a Top End winter morning alike.
-
Press-bar vacuum lock: Lift the lever, place on glass, press down to lock. Lift again to release. Re-positionable as many times as you need.
-
Stainless-steel triangular plate: Connects the three cups and the ball base into one rigid assembly.
-
Universal 1.5" (C-size) ball: Works with any C-size double socket arm and device holder, including RAM Mounts and the rest of the Outcamp Modular Mount System.

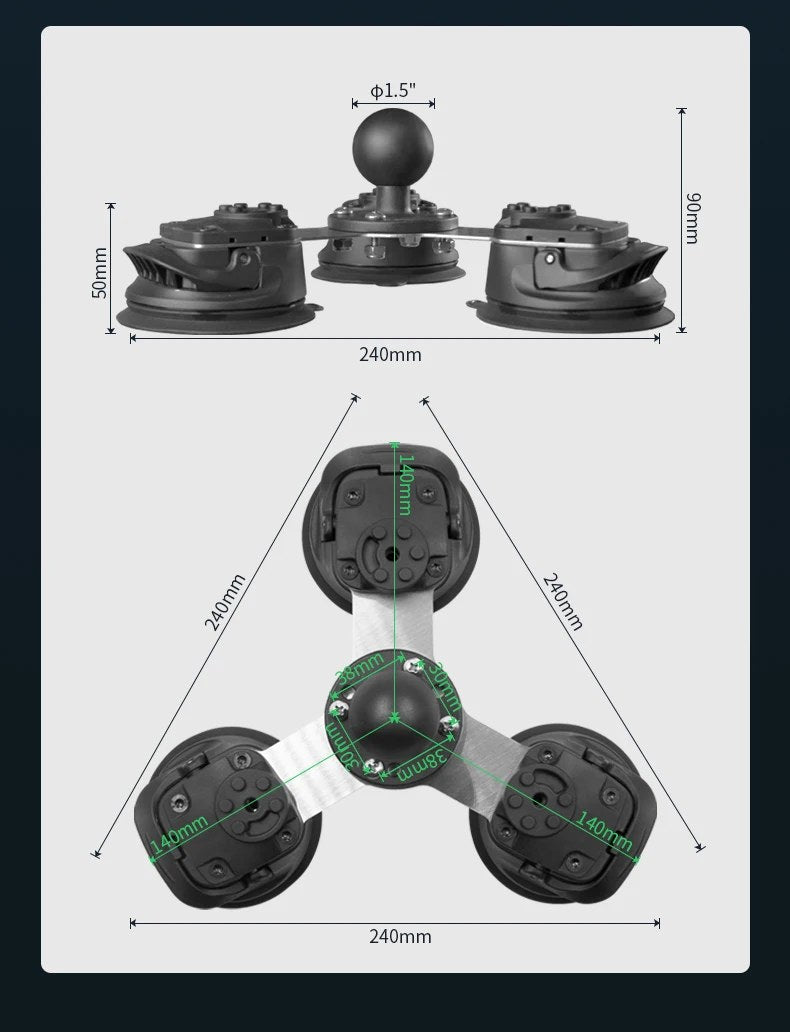

Specifications
- Ball size: 1.5" (38mm) — C-size, RAM Mounts compatible
- Footprint: 240mm x 240mm triangle (140mm cup-to-cup spacing)
- Suction plate diameter: 86mm per cup
- Mount height: 90mm (50mm cup body + ball)
- Cups: 3 x industrial rubber vacuum suction cups with press-bar lock
- Centre plate: stainless steel triangle

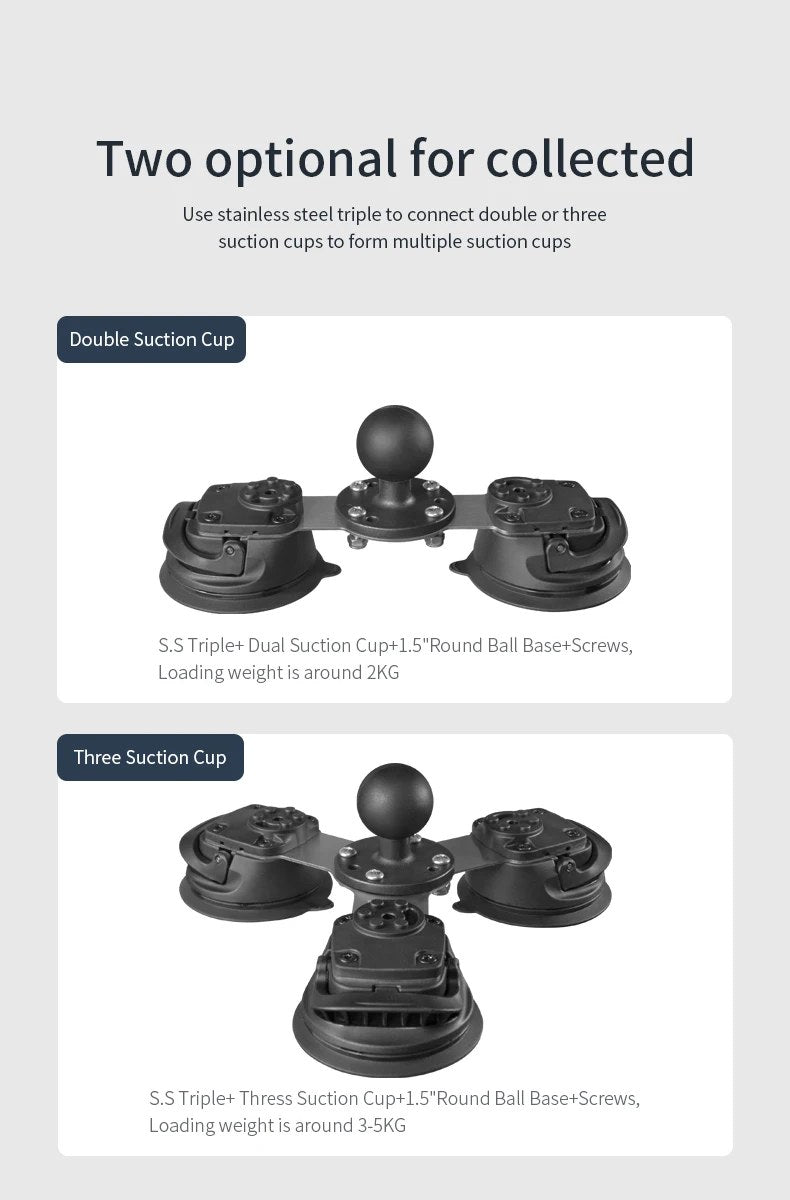

- Standard load capacity: 1.5kg
- Heavy-duty load capacity: 3–5kg
- Operating temperature: -20°C to 60°C
- Maintenance: cups can be rinsed with water

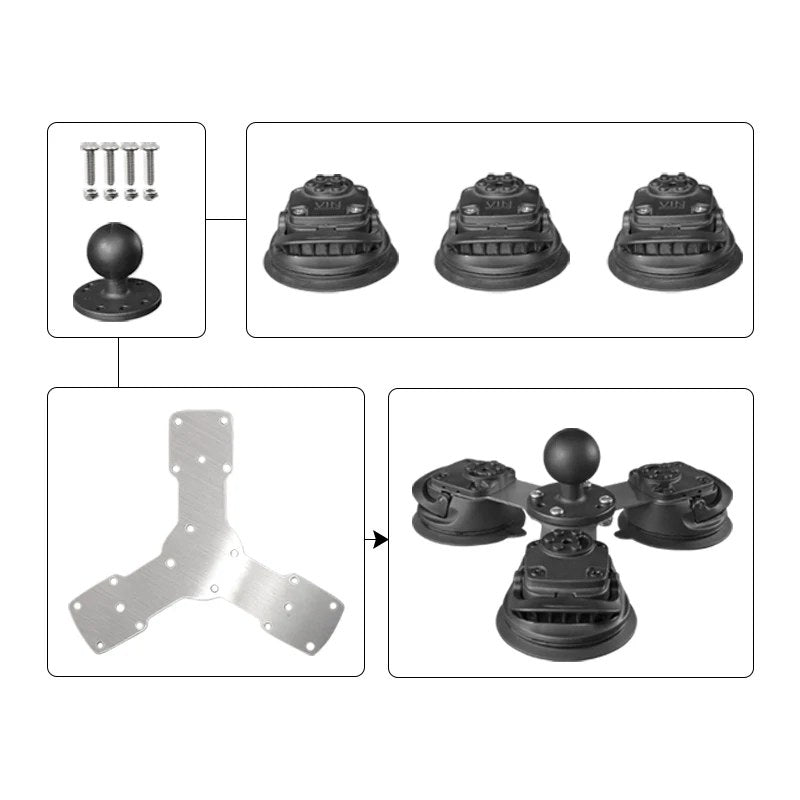

What's in the Box
- 1 x Stainless-steel triangular plate
- 3 x Vacuum suction cups with press-bar levers
- 1 x 1.5" round ball base
- Mounting screws
Compatibility

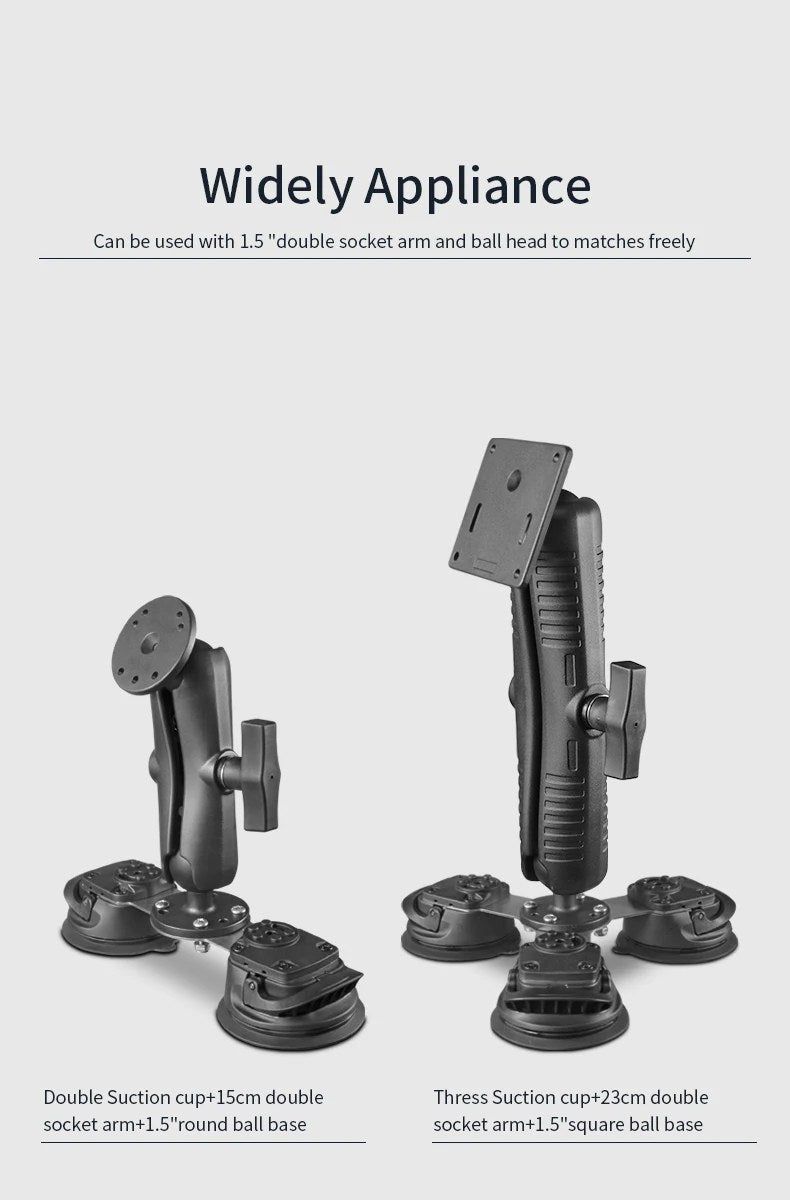

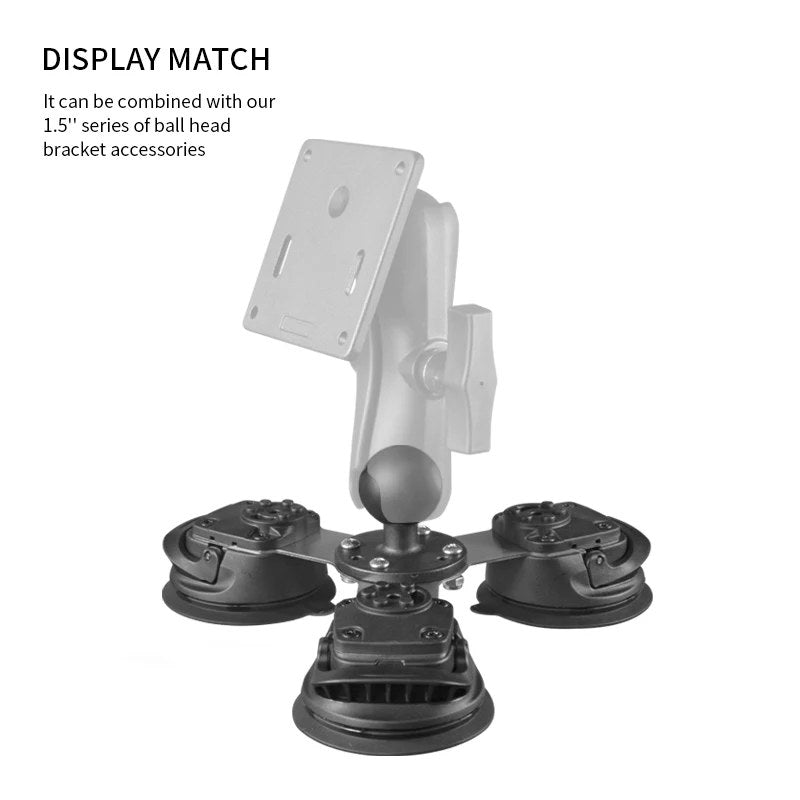

The 1.5" ball is the standard C-size used by RAM Mounts and the Outcamp Modular Mount System. Pair this base with any C-size double socket arm and a C-size device holder (tablet cradle, phone cradle, AMPS plate, GPS holder, fish-finder cradle) to build a complete mount.
Where it works
- 4WD windscreens for touring tablets and GPS units
- Boat windscreens, hatches and cabin glass for chartplotters and tablets
- Caravan windows for an off-grid entertainment tablet

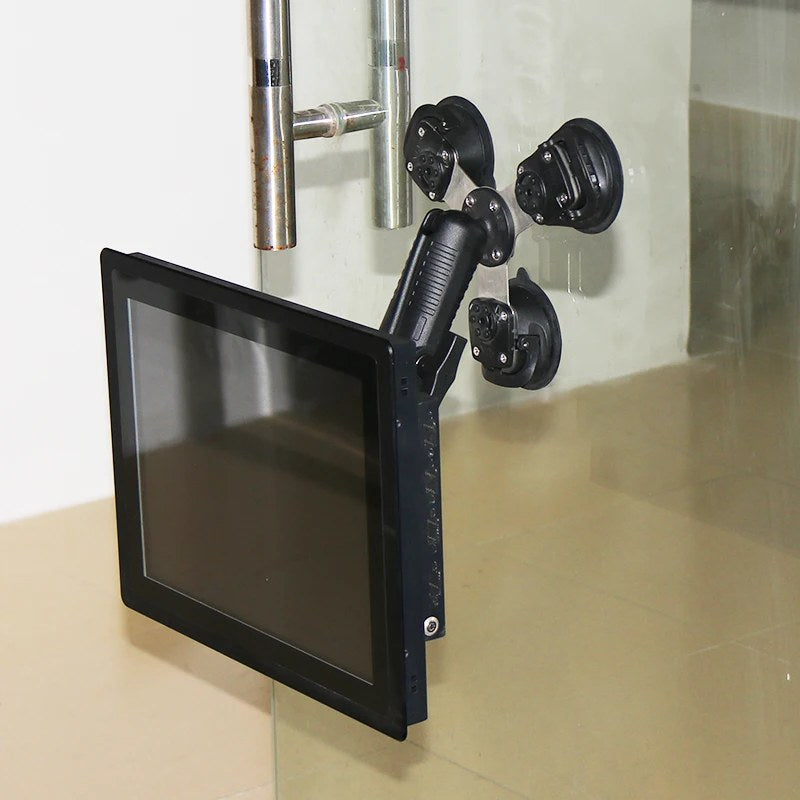

- Smooth workstation panels and roller-door glass for monitor mounting
Part of the Outcamp Modular Mount System. Ships Australia-wide.
