Plug-in-the-wall is fine if you've got mains power. But the whole reason you bought a Starlink Mini was probably to use it where there isn't any. So how do you power it cleanly off a 12V battery in your 4WD, ute canopy, slide-on, camper trailer or caravan?
The Mini's quirk is that it doesn't run on raw 12V — it needs USB-C Power Delivery (PD) at higher voltages (typically 15V or 20V) to function properly. That changes how you wire it. Here are the three real-world options, from easiest to most permanent.
TL;DR
- The Mini needs a USB-C PD source rated up to ~100 W.
- Easy: Plug a USB-C PD car adapter into a cig socket. 5 minutes, no install.
- Clean: Hardwire a USB-C PD outlet into your canopy/caravan. Looks factory.
- Beefy: Use a DC-DC converter feeding a USB-C PD module for permanent installs.
- A standard 5 V USB phone charger will not power the Mini. Period.
Why a Cheap USB Charger Won't Work
Old-school USB outputs 5V. The Starlink Mini needs USB-C Power Delivery, a smart protocol that negotiates higher voltages (9V, 15V, 20V) at higher wattages between charger and device. A 5V charger doesn't speak the language. Even some PD chargers only speak the lower tiers — the Mini wants the full 100W spec.
Look for a charger labelled "USB-C PD 65 W minimum", ideally "USB-C PD 100 W". If it's not labelled with both PD and wattage, walk away.
Option 1 — USB-C PD Car Adapter (Easy)
The fastest, lowest-effort way to power the Mini in any vehicle. A quality 65–100W USB-C PD car adapter plugs into a cig socket or merit outlet and gives you a USB-C port on the dashboard. Plug the Mini's cable in, you're done.
Pros:
- Zero installation
- Works in any vehicle with a 12V outlet
- Easy to move between vehicles
Cons:
- Cable runs across the cabin — messy
- Cig sockets vibrate loose on corrugations
- Limited to one device at a time
This is what we'd recommend for a weekender or someone trialling the Mini before committing to a permanent install.

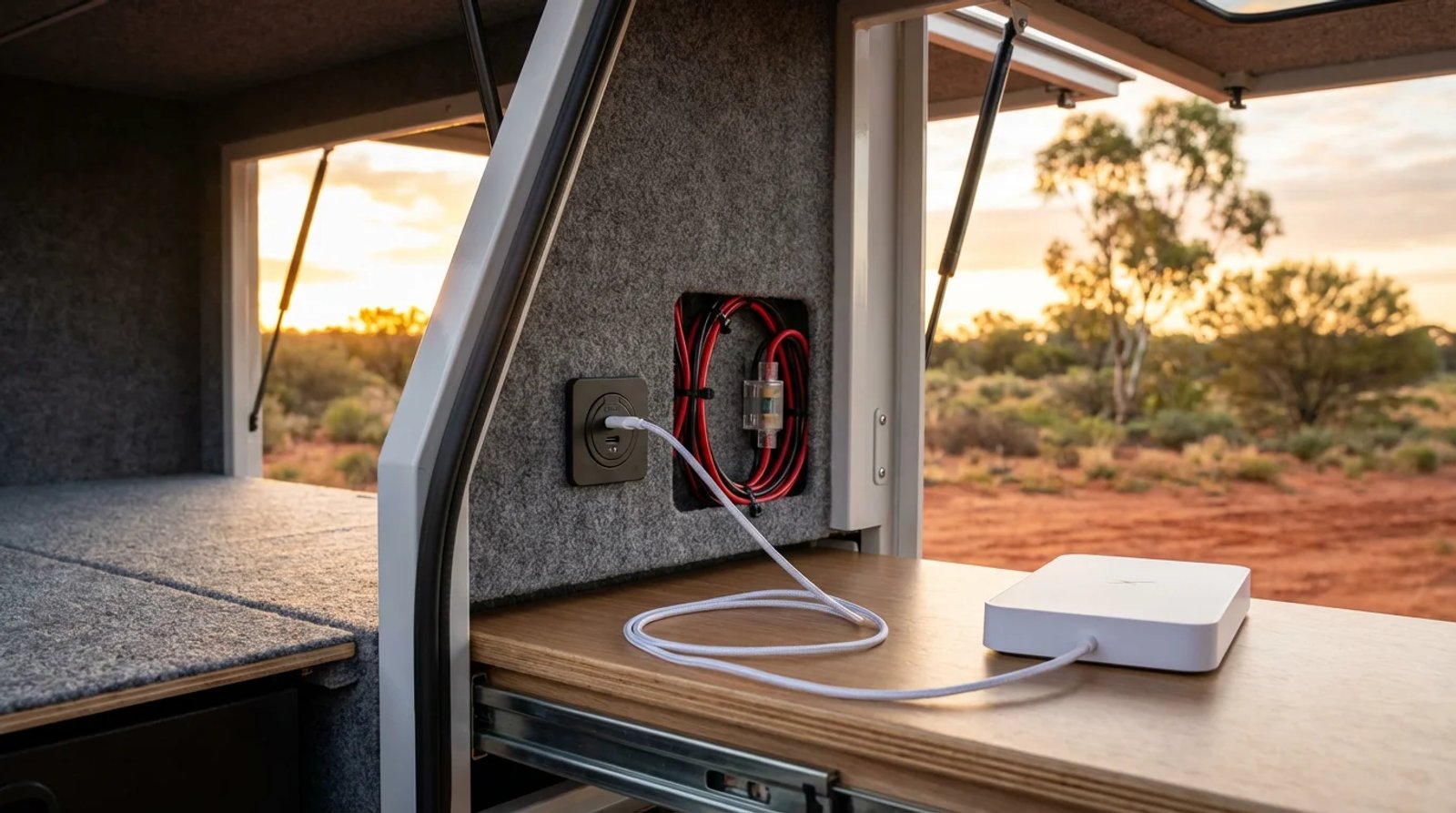

Option 2 — Hardwired USB-C PD Outlet (Clean)
The sweet spot for most touring rigs. You install a flush-mount USB-C PD outlet into the wall of your canopy, drawer system, slide-on or caravan, and wire it directly to your auxiliary battery via a fuse.
Parts you'll need
- USB-C PD outlet rated 65–100 W (often labelled "QC + PD")
- Inline fuse holder + 10 A fuse
- 12–14 AWG (3–4 mm²) red and black cable, length to suit
- Crimp terminals matched to the outlet
- Hole saw matched to the outlet body (often 28 mm)
Quick wiring guide
- Turn off your auxiliary battery isolator before doing anything.
- Drill a clean 28 mm hole where you want the outlet.
- Run red cable from your fuse panel (or auxiliary battery, via inline fuse) to the outlet's positive terminal.
- Run black cable from a chassis ground (or battery negative) to the outlet's negative terminal.
- Crimp terminals, push the outlet through, secure with the supplied nut.
- Add a 10 A fuse and turn the system back on.
Cable sizing: for runs under 3 m at this current, 14 AWG (~2.5 mm²) is fine. For longer runs, step up to 12 AWG to avoid voltage drop. Voltage drop matters because PD negotiation is sensitive — the outlet needs healthy voltage at the input to deliver full output.
Browse our 12V Accessories and Starlink Mini Power Cables collections for purpose-built outlets and pre-made cables.
Option 3 — DC-DC + PD Module (Beefy)
Overkill for most people, but worth knowing about for permanent installs in larger rigs (motorhomes, expedition vehicles, off-grid cabins). You feed a DC-DC step-up converter (12V → 20V), then drive a high-current USB-C PD trigger module from that. The Mini sees a clean, regulated 20V supply with no negotiation overhead.
When this makes sense:
- You're running multiple high-power devices off one bus
- You want absolute reliability with no PD-handshake quirks
- Your battery voltage sags under load (e.g. older AGM systems where the input voltage drops below what some PD adapters tolerate)
This is generally a job for someone comfortable with 12V wiring or an auto electrician. Not the entry point for most users.
Cable and Fuse Sizing — A Quick Reference
| Run length (one way) | Cable | Fuse |
|---|---|---|
| Under 1.5 m | 14 AWG / 2.5 mm² | 10 A |
| 1.5 – 3 m | 12 AWG / 4 mm² | 10 A |
| 3 – 6 m | 10 AWG / 6 mm² | 10 A |
The Mini at full tilt pulls about 5 A from a 12V battery (allowing for converter losses). A 10 A fuse gives sensible headroom for boot spikes without leaving the cable unprotected.
Common Mistakes
- Buying a 30 W or 45 W "USB-C PD" car adapter. Not enough wattage. The Mini boots, then drops out under load.
- Running power through a thin cigarette extension lead. Voltage drops, the PD adapter can't negotiate full power, the Mini reboots.
- No fuse. A short circuit on a 100 Ah lithium battery is genuinely dangerous. Always fuse close to the battery.
- Mounting the outlet near water spray. Even "marine" rated outlets corrode if they live in spray. Mount inside the canopy, not on the rear bar.
- Cheap no-name cables. Quality matters more here than for normal phone charging — the Mini is fussy about flaky cables.
The Bottom Line
For most Aussie touring rigs, a hardwired USB-C PD outlet is the goldilocks choice — looks factory, never works loose on corrugations, leaves the cig socket free for the air compressor. Spend an afternoon doing it once and your Starlink Mini will run cleanly from your house battery for years.
For pre-tested USB-C PD car adapters, hardwire kits and Mini-compatible cables that hold up to Aussie conditions, browse our Starlink Mini Power Cables collection.
